Liquid Flow Isolation Solution

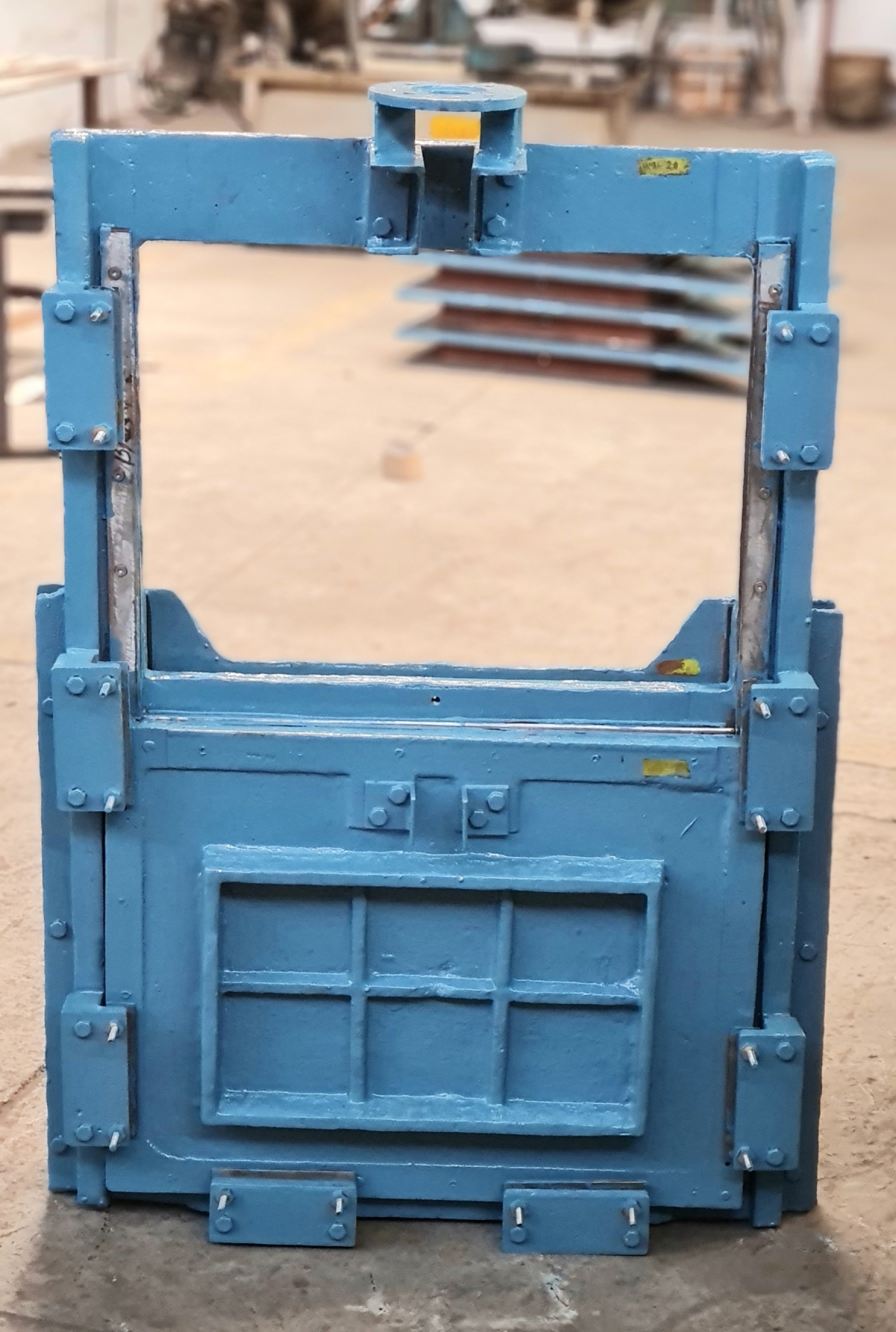

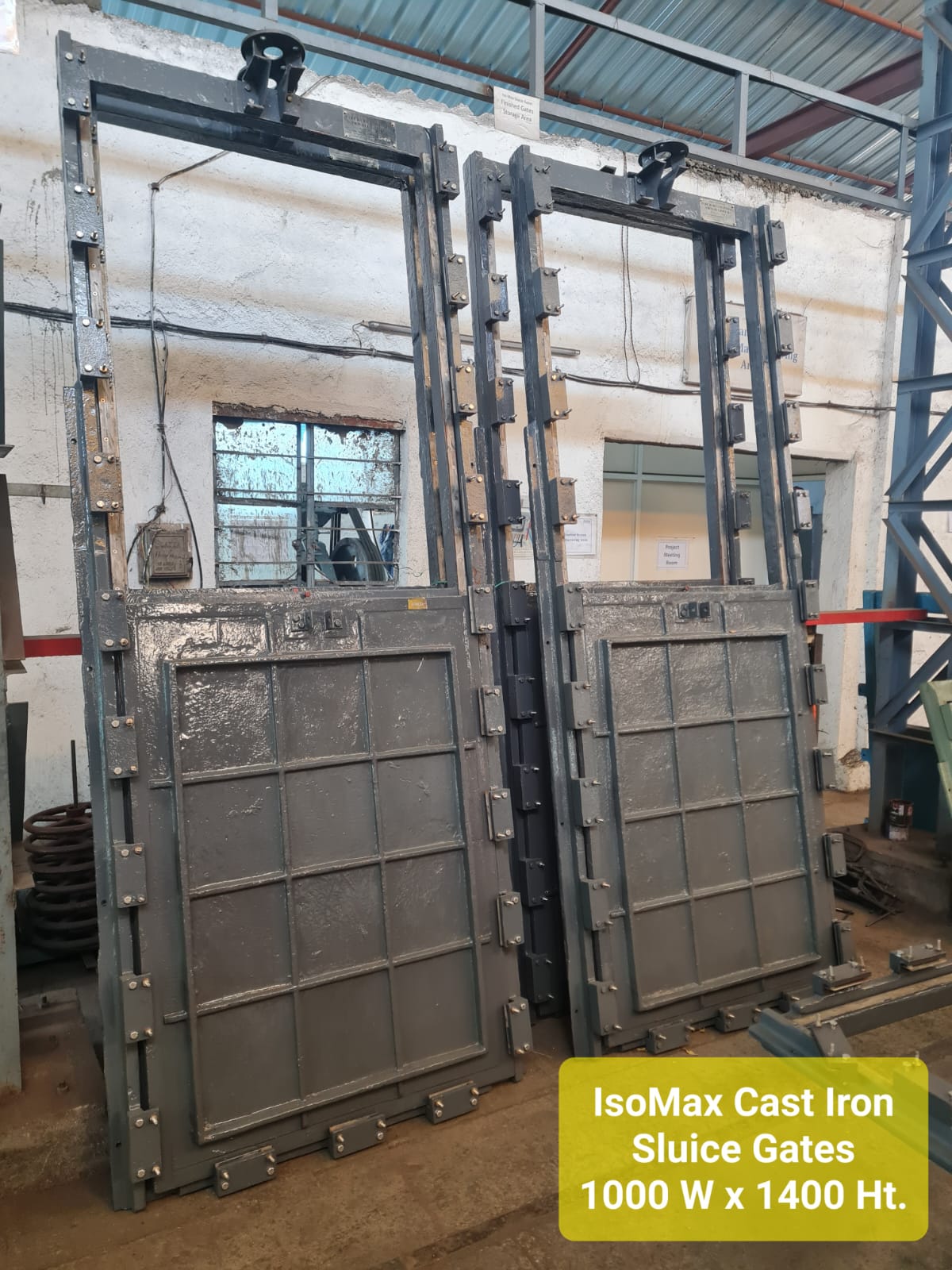

Iso-Max Cast Iron Open Channel Sluice Gates
These sluice gates are installed at Primary Treatment Units of STPs and where water flow control is to be achieved and the water level is less than the height of the shutter.
Name |
Specifications |
|---|---|
|
IS Standard Followed |
IS 3042:1965 |
|
MOC |
For Castings – Cast Iron FG 200 |
|
|
For Stem – SS 304 / SS 316 |
|
|
For Seats – SS 316 / Naval Brass |
|
Resilient Rubber |
EPDM |
|
Sizes |
100 x 100 to 2500 x 2500 mm Range for clear opening size. |
|
Method of Activation |
Manual and Motorized Operated Modes available |
Iso-Max Cast Iron Thimble Backed Sluice Gates
This screen is installed at inlet wells, raw sewage pumping
Stations, headworks etc.
Name |
Specifications |
|---|---|
|
IS Standard Followed |
IS 13349:1992 |
|
MOC |
For Castings – Cast Iron FG 200 |
|
|
For Stem – SS 304 / SS 316 |
|
|
For Seats – SS 316 / Naval Brass |
|
Resilient Rubber |
EPDM |
|
Sizes |
100 x 100 to 2500 x 2500 mm Range for clear opening size. |
|
Method of Activation |
Manual and Motorized Operated Modes available. |
Iso-Max Aluminium Assembled Sluice Gates
This screen is installed at Raw Sewage Pumping Stations,
Storm Water Systems, Jack Wells and Intake Wells
Name |
Specifications |
|---|---|
|
IS Standard Followed |
Parchure Standard |
|
MOC |
For Gate – T 6061 Alloy - AL |
|
|
For Stem – SS 304 / SS 316 |
|
|
For Seats – SS 316 / Naval Brass |
|
Resilient Rubber |
EPDM |
|
Sizes |
100 x 100 to 2500 x 2500 mm |
|
Method of Activation |
Manual and Motorized |

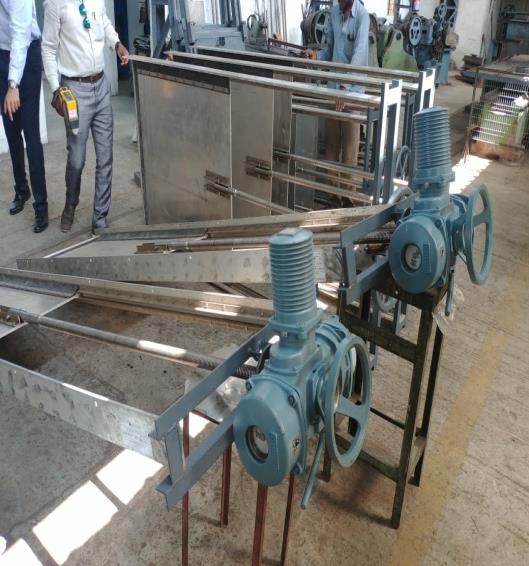

Iso-Max Stainless Steel Sluice Gates
These gates are installed for marine, storm water, CETP and Industrial Applications. Sometimes, the gates are also used in Sewage , Water and Effluent treatment plants.
Name |
Specifications |
|---|---|
|
IS Standard Followed |
IS 13349:1992 |
|
MOC |
For Castings – SST 304 / SST316 or Duplex Stee |
|
|
For Stem – SS 304 / SS 316 |
|
|
For Seats – SS 316 / Naval Brass |
|
Resilient Rubber |
EPDM |
|
Sizes |
100 x 100 to 2500 x 2500 mm Range for clear opening size. |
|
Method of Activation |
Manual and Motorized Operated Modes available. |
Don't Waste Clean Water, Just Save It
Parchure Engineers Private Limited, is Certified Engineering Company manufacturing Quality & Innovation Driven Process Equipment for the Water and Waste Water Management Sector since 2011.
Iso-Max Flap Gate / Unidirectional Gate
These gates are to allow flow in one direction only. For Instance when flow is going out in low tide and to be Stopped during high tide.
Name |
Specifications |
|---|---|
|
IS Standard Followed |
Parchure Engineers Standard |
|
MOC |
For Gate – MSEP/SST304/316 |
|
|
For Stem – SS 304 / SS 316 |
|
|
For Seats – SS 316 / Naval Brass |
|
Resilient Rubber |
EPDM |
|
Sizes |
100 x 100 to 2500 x 2500 mm Range for clear opening size.
|
|
Method of Activation |
Manual only by Water Pressure. |
Stop Log Gates
These gates are used to isolate flow in irrigation or raw Water treatment projects, power plant water storage etc Applications.
Name |
Specifications |
|---|---|
|
IS Standard Followed |
Parchure Engineers Standard |
|
MOC |
For Gate – MSEP/SST304/316 |
|
|
For Stem – SS 304 / SS 316 |
|
|
For Seats – SS 316 / Naval Brass |
|
Resilient Rubber |
EPDM |
|
Sizes |
100 x 100 to 2500 x 2500 mm Range for clear opening size. |
|
Method of Activation |
Manual only by Water Pressure. |
